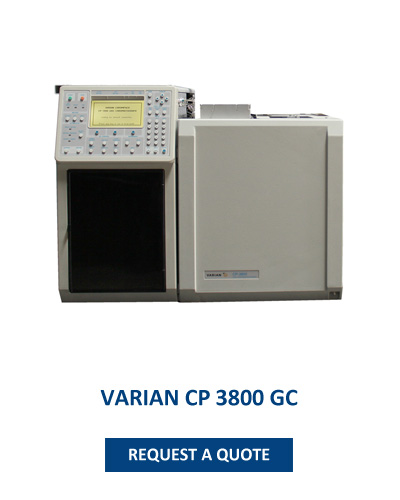

VARIAN CP

Column Oven

Dimensions: 28 cm (w) x 20 cm (d) x 28 cm (h)

Temperature range: ambient +4 oC to 450 oC

With liquid N2: -99 oC to 450 oC

With liquid CO2: -65 oC to 450 oC

Temperature program ramps/holds: 7/8

Maximum temperature ramp rate: 100 oC /min for all voltages

Maximum temperature ramp rate: 100 oC /min for all voltages

Temperature set-point resolution: 1 oC

FID

Maximum temperature: 450 oC.

Detectivity: 2 pg C/sec.

Linear dynamic range: 107.

Patented ceramic flame tip: standard.

Flame-out detection/auto re-ignition: standard.

CP-1177 Split/Splitless

Pressure range: 0-100 psi

Total flow: 500 mL/min at 10 psi

Maximum temperature: 450 oC

Split range: 1-10,000 (column dependent)

Dimensions and Weights

Size: 53 cm (h) x 66 cm (w) x 56 cm (d)

Weight: 43 kg
